Continuous Micro-film cooker
- Brand:
- Type:

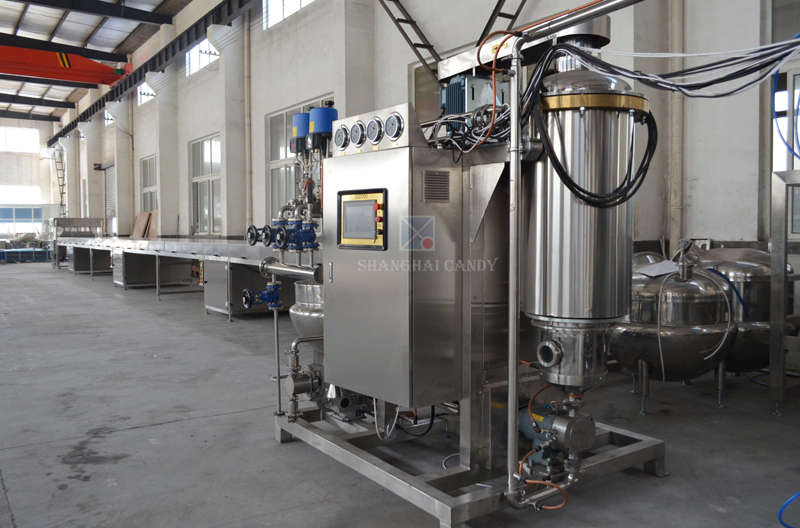

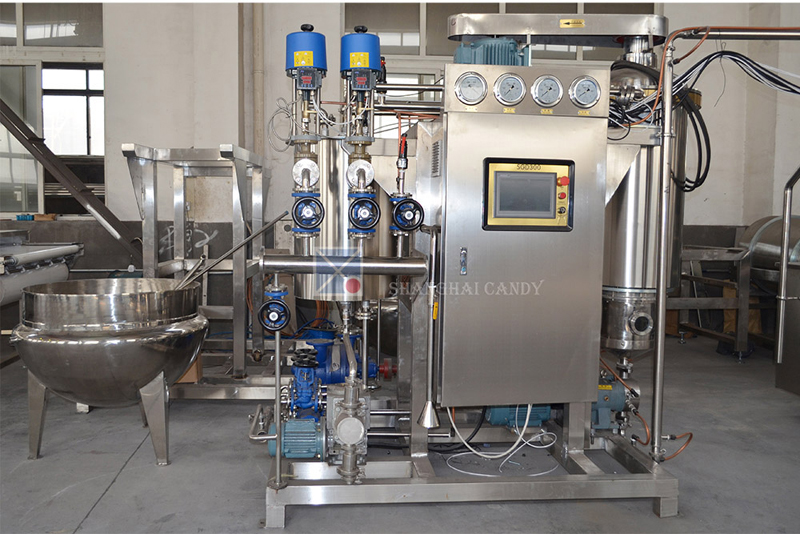

AGD150/300/450/600 Continuous Vacuum Micro-film Cooker
This unit consists of PLC control system, feeding pump, pre-heater, vacuum evaporator, vacuum pump, discharge pump, temperature pressure meter, and electricity box. All these parts are installed in one machine, and connected by pipes and valves. Flow chat process and parameters can be clearly displayed and set on touch screen. The unit has many advantages as high capacity, good sugar-cooking quality, high transparent of syrup mass, easy operation. It is an ideal device for the hard candy cooking.
Parameter:
|
Capacity |
150kg/h |
300kg/h |
450kg/h |
600kg/h |
|
Steam consumption |
120kg/h |
200kg/h |
250kg/h |
300kg/h |
|
Stem pressure |
0.5~0.8MPa |
0.5~0.8MPa |
0.5~0.8MPa |
0.5~0.8MPa |
|
Electric power needed |
12.5kw |
13.5kw |
15.5kw |
17kw |
|
Overall dimension |
2.3*1.6*2.4m |
2.3*1.6*2.4m |
2.4*1.6*2.4m |
2.5*1.6*2.4m |
|
Gross weight |
900kg |
1000kg |
1100kg |
1300kg |
